Journey of Webhooks from Basics to Tech Depths

Oct 13, 2023

Picture this.

It’s a cozy Saturday night, and you decide to treat your family to a delightful dinner at a renowned fine-dining restaurant. However, you arrive to find the place fully booked, with no available tables. Undeterred, you jot down your name and phone number on their waitlist.

The receptionist, in this case, becomes the intermediary, assuring you that they’ll give you a call as soon as a table becomes available.

In the digital realm, webhooks operate in a similar fashion. One system subscribes to monitoring specific events, just like you put your name on the waitlist. When that event occurs, Computer B (akin to the receptionist) sends a notification to Computer A (you) about the event’s occurrence. Webhooks act as the messengers of the tech world, facilitating seamless communication between applications whenever an event takes place.

So, what exactly are webhooks? Why are they important? And how can you master webhook design?

Keep reading, as our Software Expert, Pratik Jain, takes you deep into the world of webhooks. Please note that this blog is not a hands-on tutorial. It discusses the technical design/solution aspects involved in creating a webhooks framework with exponential delay in retries.

What are Webhooks?

Simply put, webhooks are an alternate form of notification service. To get a better idea, let’s recall the previous scenario, but without a waitlist notepad. In this case, you find yourself having to visit the reception every few minutes just to inquire about table availability. This becomes a tedious and time-consuming task for both you and the restaurant staff.

The constant need to ask for updates at regular intervals, like every second or minute, is akin to what is known as polling in computer science. In this context, polling is highly in and resource-intensive for both parties involved.

Webhooks eliminate the need for one server to continuously check (or “poll”) another server for updates. Polling is not optimal and consumes lots of resources on both ends. Instead, a webhook only triggers when a specific event, like your table being ready, occurs. This event then promptly initiates the communication from one server to the other in a swift, efficient, and real-time manner.

Now, imagine the receptionist calls to inform you, but you miss the call. She doesn’t give up; she tries again. Even if you still don’t pick up, she persists with one last attempt. Finally, when you do answer, you receive the information you’ve been waiting for.

In a similar fashion, when one server sends a request to another server, there’s a chance that the first request might time out or the receiving server could be temporarily unavailable. This can result in no response being received. However, webhooks come with built-in retry mechanisms that ensure fail-safety, a feature that normal API requests typically lack.

Comprehensive Exploration of Webhooks

Let’s break our webhooks exploration into three sections.

  • Product and Tech Requirements
  • Webhooks Framework
  • Technical Deep Dive – System Design, Database Design & Retry Framework

Product and Tech Requirements

Let us try to create webhooks for merchants to receive notifications when an order is successfully paid or failed. The system would notify their servers whenever a payment is made on the platform.

Webhooks Framework

The webhooks framework enables real-time communication and event-driven interactions between different systems or services, allowing them to stay synchronized and respond promptly to relevant events.

How to Add a Webhook?

Adding a webhook is simple. Below is the sample visual snapshot from the dashboard.

How to Set up a Webhook on Merchant Panel?

Input the Webhook URL and choose the events you wish to listen or subscribe to. That’s all the configuration you need. Whenever one of these events takes place, we’ll send a notification to the provided Webhook URL, which is the merchant’s server URL. For example, if Amazon is a merchant, they will enter their webhook endpoint (they created) to receive the notifications for these events.

Security Checks & System Restrictions

  • You can only add https (secured) Webhook URLs.
  • URLs that include “company name” within the domain are not permissible. This precautionary measure is in place to avoid excessive creation of webhook endpoints on servers. The incorporation of DNS verification during URL addition mitigates the risk of DNS spoofing.
  • To reinforce security, payload signing is employed via a shared secret key, ensuring that integrating parties can validate the source of API calls from the platform. Additionally, the IPs must be whitelisted on the firewalls.
  • The system permits the activation of a maximum of 5 webhook endpoints concurrently. This limitation is to prevent the unwarranted depletion of resources by individuals attempting to establish an extensive number of webhook endpoints.

What Happens When the Webhook is Triggered?

Let’s say a transaction is successful and the order is marked as a success. This will trigger the “Order Successful” webhook.

This webhook is published to a queue. The consumer service does the heavy lifting of figuring out which merchant needs to send the notification and then hits the merchant’s webhook URL.

If the merchant’s server responds to a webhook hit with an error, a message is published into another queue called “retry queue” which retries the above process. This retry mechanism continues till 3 retries are exhausted after which the webhook request’s status is marked as “failed” in the database.

Notably, the retry strategy incorporates an intelligent waiting period, following an exponential pattern. The intervals are strategically set at 5 minutes, followed by 2 hours, and then 10 hours. This deliberate design ensures ample time for the receiving server to potentially recover from any adverse or error-prone conditions before formally marking the webhook request as failed.

Tech Deep Dive

The detailed system architecture for this entire framework is broken down into 3 parts.

  • System Design
  • Database Design
  • Retry Framework

System Design

Step-by-Step Workflow for System Design

  • The merchant logs in to the dashboard and configures the webhook URL while subscribing to the “order successful” event.
  • The webhook CRUD service stores this configuration data in the database.
  • When a product or service is purchased on the merchant’s app, the request is routed to the transaction service, which processes the transaction and updates the order status to “paid.”
  • Simultaneously, as the order status changes to “paid,” the Webhook Utility, a component within shared commons library used across microservices, is triggered. This utility creates a webhook request, saves it in the database, and pushes it to Kafka’s webhook topic.
  • Consider an instance of the Transaction Service configured to operate as a Consumer Service, enabled via environment variables. This service incorporates the Consumer Service APIs from the commons library, which are designed for Kafka.

  • The message from the Kafka topic is consumed, leading to the invocation of external service on the merchant’s side.
  • When a 2xx response is received from the merchant’s server, the corresponding webhook request is marked as “success” in the database.
  • In the case of a non-2xx response, the same message is routed to a retry topic, where the retry framework comes into play, as explained in the next section.

Important Note: The Transaction Service can be replaced with any other service because no logic related to Kafka / Webhooks is present inside it directly making it loosely coupled. They reside in commons library.

Database Design

Designing the database is often the simplest aspect. The thumb rule of good software design is that whatever components change, we abstract it out of the main logic.

Now, let’s consider what elements could potentially undergo changes.

  • Webhooks collection: Created to make it entity agnostic, where entities are merchant, admin, acquirer, etc.
  • Webhook requests collection:  To show the delivery report of the webhook requests triggered to each entity.
  • Webhook event types collection: To store all the webhook configurations like display name and the actions that can be performed on the webhook event, etc.

Below is the code for a sample webhook event type Mongoose schema.

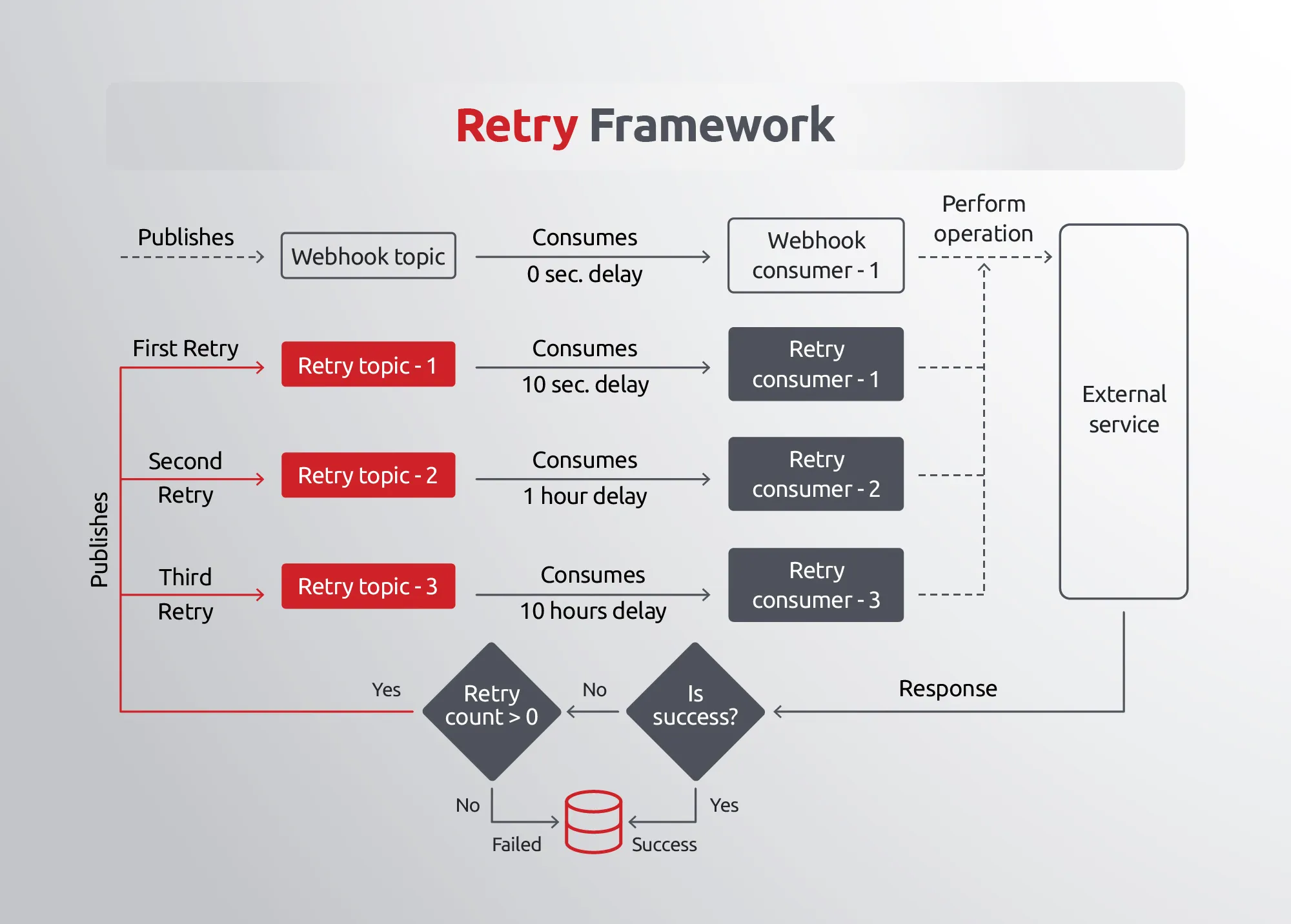

Retry Framework – Implementation Detail

Kafka is used to ensure that the webhooks are not fired and forgotten.  A retry framework is built which can be reused for any future use cases like notifications, auditing, etc.

Given below is a simple design of how the Kafka pipeline is implemented in the application.

To expand upon this framework, there is a flexibility to introduce various consumer groups in Kafka, each capable of executing distinct actions beyond simply triggering webhooks. Furthermore, there are options to continuously integrate additional microservices that contribute to the same topic.

Since Kafka’s partition distribution among consumer groups aids in scalability, the focus is on the retry framework.

When translated to code, the configuration looks something like this.

The way to achieve and build a retry framework is to harness the power of pausing and resuming the consumer. By leveraging different consumers for different retry topics, you can pause and resume separate consumers depending on the delay you want the topic to create.

The kafka.js library uses eachMessage() API to poll the topic and consume messages, but it sends the heartbeat to the broker after it has read each message. So, if consuming a message takes more than “session timeout” then the broker will think the consumer is dead and rebalance the partitions assigned to that consumer. The ‘session timeout’ is increased to a bigger number, but then unhealthy consumers will be noticed very late which is not what they want.

Therefore, to solve this problem the application uses heartbeat () while consuming the messages from the topics. The eachMessage () API gives access to the heartbeat () function where the broker uses setInterval () every X seconds so that the consumer is alive which prevents unnecessary rebalancing of partitions.

With this, we have covered Webhook requirements in both product and tech. It is important to remember that mastering the art of webhooks design isn’t just about code – it’s about architecting connections that empower seamless communication in the digital world.
